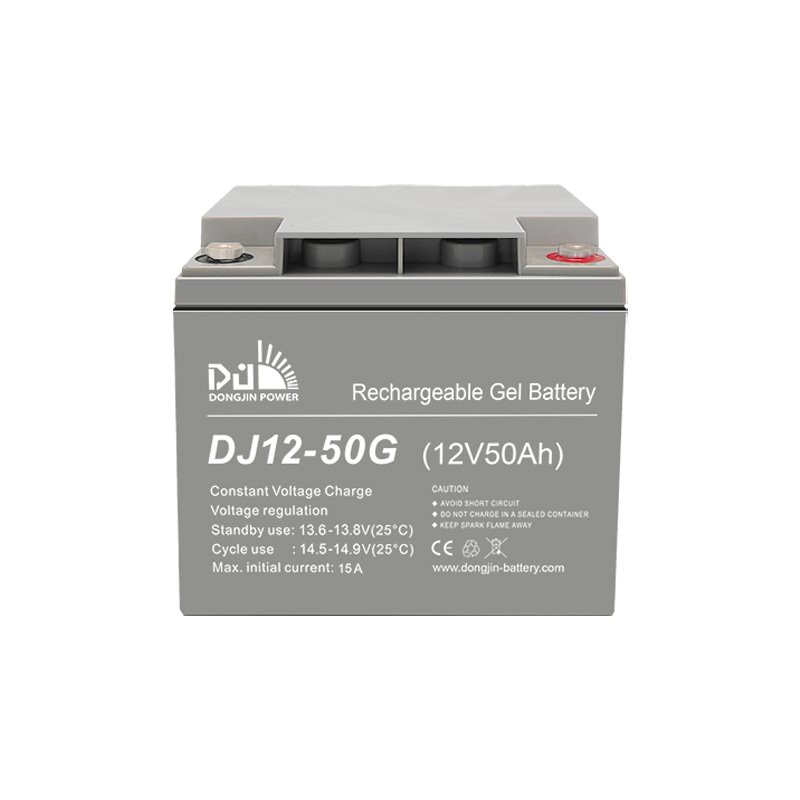

12V 50Ah Gel Battery Data Sheet
| Parameter | Specification |
|---|---|
| Battery Type | Gel VRLA (Valve Regulated Lead Acid) |
| Nominal Voltage | 12V |
| Nominal Capacity | 50Ah |
| Energy Capacity | 600Wh |
| Battery Chemistry | Lead Acid with Silica Gel Electrolyte |
| Design Life | 6–8 years (float conditions) |
| Cycle Life | 600+ cycles @ 50% DOD |
| Recommended Charge Voltage | 14.1V – 14.4V |
| Float Charge Voltage | 13.5V – 13.8V |
| Maximum Charge Current | ≤ 10A |
| Discharge Cut-off Voltage | 10.5V |
| Depth of Discharge | Recommended up to 50% |
| Maintenance | Maintenance-Free |
| Self-Discharge Rate | ≤ 3% per month |
| Operating Temperature | –20°C to 50°C |
| Storage Temperature | –15°C to 40°C |
| Terminal Type | F12 / M6 Bolt |
| Container Material | ABS |
| Installation Position | Vertical |
| Weight | Approx. 15–17 kg |
| Dimensions (L×W×H) | Approx. 229 × 138 × 208 mm |
| Typical Applications | UPS, Emergency Lighting, Security Systems, Solar, Small Inverters |
