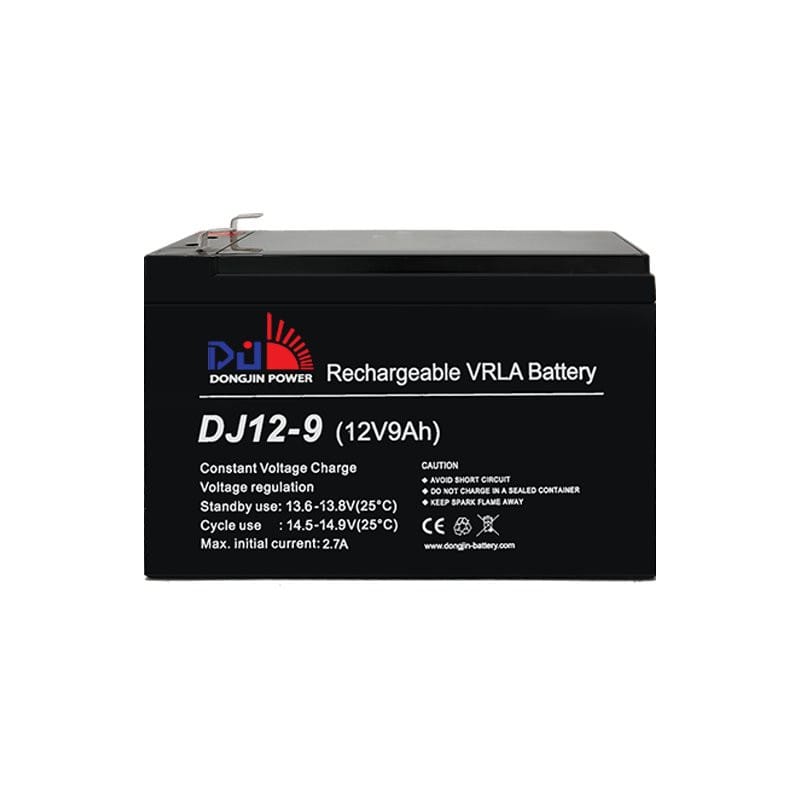

| Battery Type |
Sealed Lead Acid (SLA) / VRLA AGM |
| Nominal Voltage |
12 V |
| Rated Capacity |
9 Ah (20-hour rate to 10.5 V) |
| Nominal Capacity @10Hr |
~8.3 Ah |
| Nominal Capacity @5Hr |
~7.5 Ah |
| Nominal Capacity @1Hr |
~5.5 Ah |
| Float Charge Voltage |
13.5 – 13.8 V @ 25 °C |
| Cycle Charge Voltage |
14.4 – 15.0 V @ 25 °C |
| Maximum Charge Current |
≤ 2.7 A |
| Maximum Discharge Current |
~135 A (5 seconds) |
| Internal Resistance |
~17 – 20 mΩ (fully charged) |
| Self-Discharge Rate |
< 3 % per month @ 25 °C |
| Operating Temperature (Charge) |
-15 °C to +40 °C |
| Operating Temperature (Discharge) |
-15 °C to +50 °C |
| Storage Temperature |
-20 °C to +50 °C |
| Design Life (Float Service) |
3 – 5 years |
| Dimensions (L × W × H) |
~151 × 65 × 94 mm |
| Total Height (with terminals) |
~100 mm |
| Weight |
~2.4 – 2.6 kg |
| Terminal Type |
F1 / F2 Faston Tabs |
| Case Material |
ABS Plastic (Sealed, Maintenance-Free) |
| Safety Features |
Pressure relief valve, sealed construction |
| Typical Applications |
UPS, alarms, emergency lighting, backup power |
