| Battery Type |
Deep Cycle Gel Lead Acid (VRLA, Sealed Maintenance-Free) |
| Model |

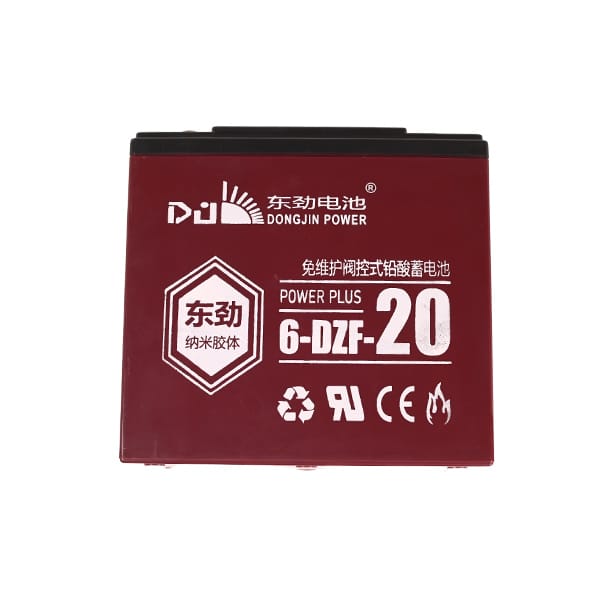

6-DZF-20 |
| Nominal Voltage |
12 V |
| Rated Capacity |
20 Ah (2Hr rate) |
| Chemistry |
Gel Electrolyte Sealed Lead Acid |
| Design Application |
Electric Vehicle / E-Bike / Scooter / Mobility |
| Float Charge Voltage |
13.6 – 13.8 V |
| Cycle Charge Voltage |
14.4 – 14.9 V |
| Recommended Charge Current |
≤ 6 A |
| Maximum Continuous Discharge Current |
20 – 30 A |
| Peak Discharge Current |
60 – 80 A (5 seconds) |
| Internal Resistance |
≤ 10 mΩ (fully charged) |
| Cycle Life |
300 – 500 cycles @ 80% DoD |
| Design Life |
3 – 5 years |
| Self-Discharge Rate |
< 3% per month @ 25°C |
| Operating Temperature (Charge) |
0 °C to 45 °C |
| Operating Temperature (Discharge) |
-15 °C to 50 °C |
| Storage Temperature |
-20 °C to 45 °C |
| Dimensions (L × W × H) |
~181 × 77 × 170 mm |
| Total Height |
~170 – 175 mm |
| Weight |
~6.0 – 6.5 kg |
| Terminal Type |
T2 / F2 Faston or bolt type |
| Case Material |
ABS Plastic, sealed construction |
| Maintenance |
Maintenance-free, spill-proof |
| Installation |
Upright position recommended |
| Series/Parallel Use |
Supports series & parallel connection |
| Typical Applications |
Electric bikes, scooters, wheelchairs, UPS, solar backup, mobility devices |
