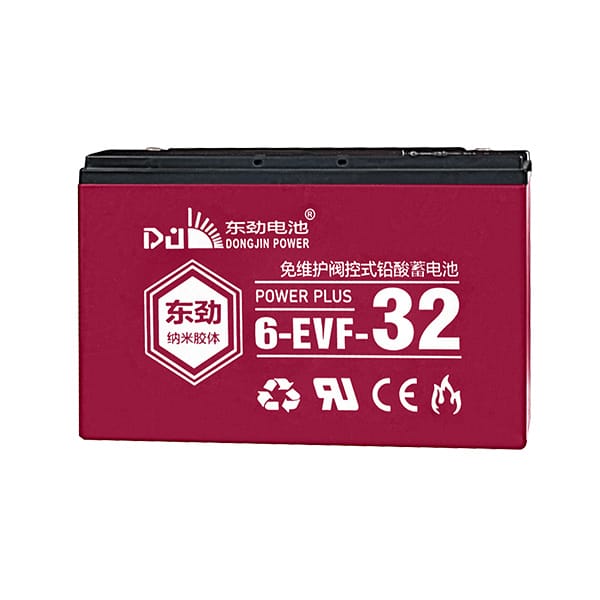

6-EVF-32 EV Battery
| Parameter | Specification |
|---|---|
| Model | 6-EVF-32 |
| Battery Type | Sealed Lead Acid VRLA (Deep Cycle / EV Grade) |
| Nominal Voltage | 12V |
| Nominal Capacity | 32Ah (3-Hour Rate) |
| Rated Capacity (10Hr) | 35–38Ah (typical) |
| Number of Cells | 6 |
| Design Life | 3–5 years |
| Cycle Life | ≥ 600 cycles @ 80% DOD |
| Recommended Charge Voltage (Cycle) | 14.5V – 14.8V |
| Float Charge Voltage | 13.5V – 13.8V |
| Maximum Charge Current | 4 – 5A |
| Maximum Discharge Current (5 sec) | Up to 220–250A |
| Discharge Cut-off Voltage | 10.5V |
| Internal Resistance | ≤ 12 mΩ (approx.) |
| Self-Discharge Rate | ≤ 3% per month |
| Operating Temperature (Charge) | 0°C to 45°C |
| Operating Temperature (Discharge) | –20°C to 50°C |
| Container Material | ABS (Sealed & Spill-Proof) |
| Terminal Type | Bolt / Nut Type |
| Weight | Approx. 9 – 10 kg |
| Dimensions (L×W×H) | Approx. 267 × 77 × 170 mm |
| Installation Position | Vertical or horizontal |
| Maintenance | Maintenance-Free |
| Typical Applications | E-Bike, E-Scooter, Electric Rickshaw, Tricycle, Small EVs, Backup Power |
