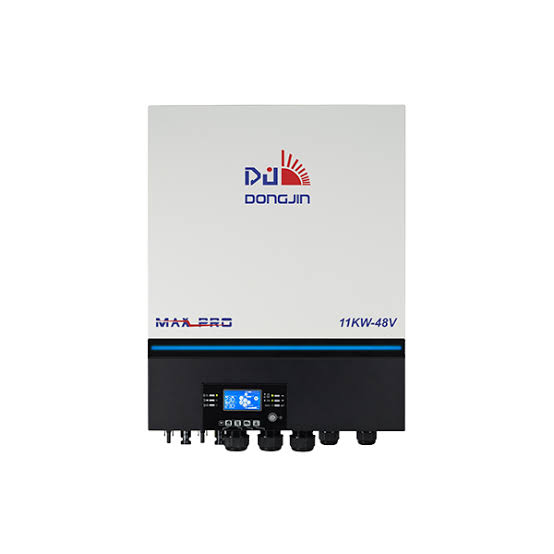

DJDC Max Pro 11kw-48V

Rated Output Power: 11 kW (11000 W) continuous AC output with ~22 kVA surge capacity for handling peak loads.
AC Output & Waveform: Pure sine wave output at 230 VAC ±5%, 50/60 Hz auto-sensing, suitable for sensitive electronics.
Battery & Charging: Works with 48 V DC battery bank, floating charge ~54 V, overcharge protection ~63 V, maximum charge current ~150 A.
Solar MPPT & PV Input: Built-in MPPT solar charger supporting up to ~11 kW PV array, wide MPPT voltage range (approx. 90–450 V DC) and max PV open-circuit voltage ~500 V.
Features & Protections: Supports parallel operation (up to 6 units), Wi-Fi/BMS communications, auto restart on AC recovery, dual inputs/outputs, and protections for overload, over-temperature, short-circuit, low/high voltage.

Categories: Hybrid Inverter

DJDC Max-Pro 11 kW-48 V Hybrid Inverter

Specification Category	Specification Value
Model Name	Max-Pro 11 kW
Rated Output Power	11 000 W / 11 000 VA
Parallel Operation	Supported (up to 6 units)
AC Input Voltage (Nominal)	230 VAC
Selectable AC Input Range	170–280 VAC (UPS), 90–280 VAC (Appliances)
AC Frequency Range	50/60 Hz (Auto sensing)
AC Output Voltage Waveform	Pure sine wave
AC Output Voltage Regulation	±5 % (approx)
AC Surge (Peak) Power	22 000 VA
Peak PV-to-Inverter Efficiency	~97–98 %
Transfer Time	~10 ms (UPS), ~20 ms (Appliances)
Battery Nominal Voltage	48 V DC
Floating Charge Voltage	~54 V DC
Overcharge Protection Voltage	~63 V DC
Maximum Charge Current	~150 A
Maximum PV Array Power	~11 000 W
Maximum PV Open-Circuit Voltage	~500 V DC
PV MPPT Voltage Range	~90–450 V DC
Communication Interfaces	RS485, CAN-BUS, RS232, Built-in Wi-Fi
Protection Features	Overload, Over-temperature, Short-circuit, Auto-restart
