Dimensions: 975×630×360 mm; Weight: 90kg.
-
Supports RS485, USB, Wi-Fi+LAN, 4G communication.
-
Compatible with MC4-like DC connectors.
-
AC connection via OT terminal.
-
Certified with IEC, EN50549 & more.
-
Operating temperature: -30°C to 60°C; altitude up to 4000m.
-
Optional AFCI and string current monitoring available.

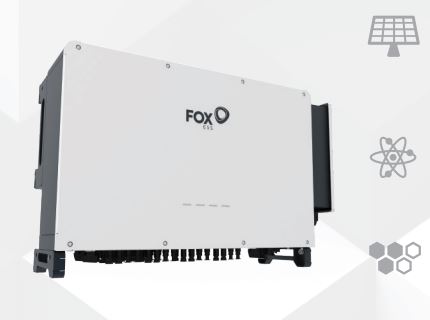

Fox ESS R Series G2 Inverter
Fox ESS R Series (G2) is a high-capacity, three-phase inverter range (75kW–136kW).
It’s built for commercial use with real-time PV string monitoring and AFCI protection.
Offers up to 10 MPPT trackers and 98.6% max efficiency.
Wide voltage range: 200–1000V with smart air cooling.
Built-in PID recovery and IP66 for tough environments.
