These Growatt inverters are engineered for compact, one‑person installation in residential PV systems, featuring excellent energy yield with 99.9% MPPT efficiency. ENF Solar+8Growatt+8Chasun Solar+8
Core safety includes DC switch, Type III surge protection, insulation resistance monitoring, anti‑islanding, grid and ground‑fault detection, and residual‑current monitoring; AFCI is optional. Alternergy+7Scribd+7Chasun Solar+7
Flexible communications: RS485, USB, Wi‑Fi, GPRS, LAN, RF options and compatibility with Growatt’s Shine monitoring platform. ENF Solar+7Growatt+7Chasun Solar+7
Nightly consumption is very low (< 0.5 W) and operating noise is ≤ 25 dB(A). ENF Solar+4PVO International+4Scribd+4
Designed for ambient temperatures from –25 °C to +60 °C, humidity up to 100%, altitude up to 4000 m. ENF Solar+4PVO International+4Scribd+4
Compact dimensions (274 × 254 × 138 mm) and weights from 6 kg up to 6.2 kg depending on capacity. ENF Solar+5Scribd+5ENF Solar+5
Warranty options include a standard 5‑year term with optional extension to 10 years. PVO InternationalAlternergy

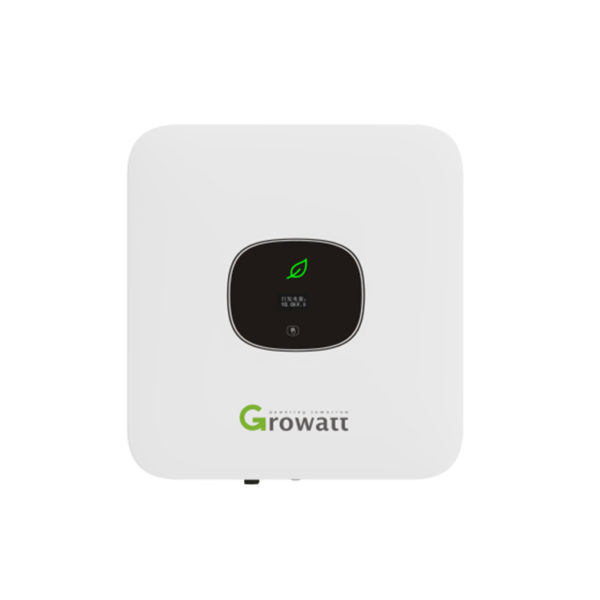

Growatt MIC 750–3300TL‑X Inverter
-
Power range: 750 W to 3300 W (models MIC 750TL‑X to MIC 3300TL‑X)
-
Max. efficiency up to 97.6% (Euro efficiency up to ~97.1%)
-
Single MPPT per unit, 1 PV string (max input current 13 A, Isc 16 A)
-
Wide MPPT voltage window (50 V start to 500–550 V max)
-
OLED + touch-key display, compact ~6 kg, IP65 rated
