Rated AC Output Power: 6 000 W (nominal), with surge capability up to ~7 200 W PV Input Capacity: Supports up to 9 000 W of solar input power
-
MPPT Configuration: Dual MPPT trackers, each handling ~13 A or one at 27 A depending on version
-
DC Voltage Range: Nominal 360 VDC, maximum up to 500 VDC; MPPT window approximately 120–430 VDC or 150–425 VDC
-
Grid Output Range: 220/230/240 VAC nominal; operating range selectable between ~180–270 VAC
-
Conversion Efficiency: Up to 97.6% (DC‑to‑AC) under optimal conditions
-
Battery Charging: 120 A max charge and discharge, designed for 48 V systems; compatible also with Li‑ion/AGM/GEL types
-
Protection & Features: Pure sine output, overload/overvoltage/short‑circuit protection, optional zero‑export & load monitoring
-
Enclosure & Cooling: IP‑65 rated (dust and water‑resistant) housing; smart fan cooling ensures thermal stability
-
Connectivity & Interface: Includes Wi‑Fi, RS485, GPRS or USB/RS232/Bluetooth options; user feedback via LCD display or RGB LED ring

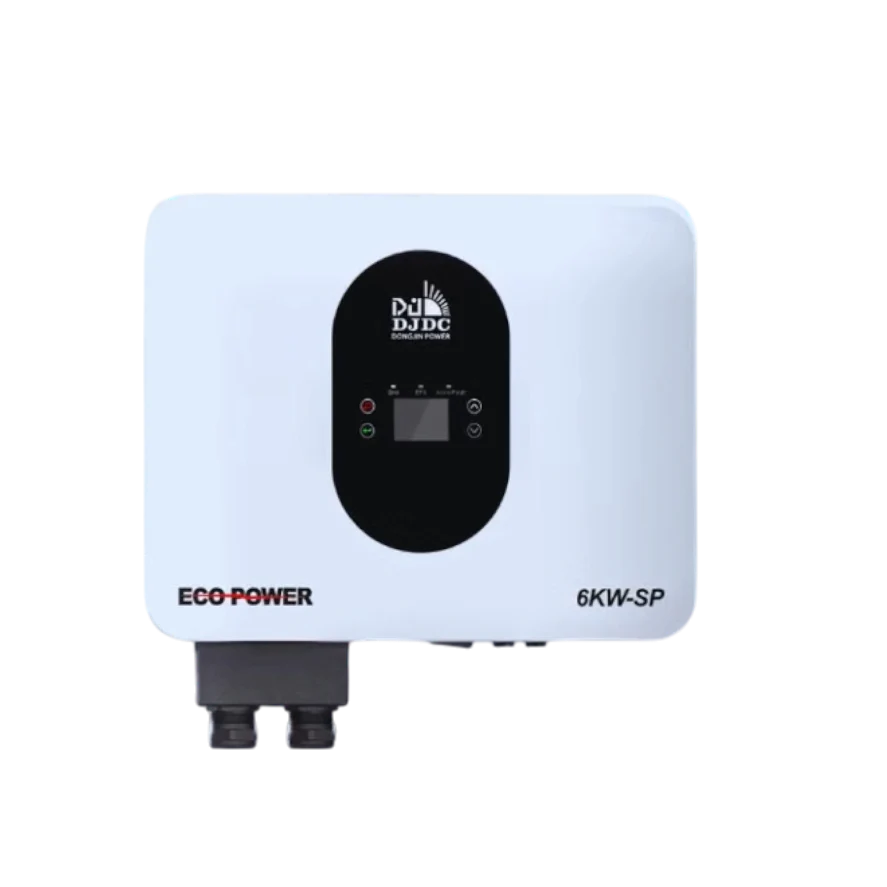

PV9000 Eco Power 6 kW Hybrid Solar Inverter
Designed for residential and light commercial solar systems, delivering a true 6 kW pure sine‑wave output.
Supports up to 9 kW PV array input with dual MPPT trackers for optimized yield.
Compatible with 48 V battery systems, charging at up to 120 A via intelligent MPPT controller.
Robust input/output protection and built‑in Wi‑Fi/USB/RS485 communication for monitoring.
