| Specification | Details |
|---|---|
| Product Type | Residential Energy Storage Battery |
| Battery Chemistry | LiFePO₄ / LFP |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Battery Voltage Range | 44.8V – 58.4V |
| Cell Specification | REPT 3.2V / 100Ah |
| Cell Configuration | 1P16S |
| Maximum Current | 100A |
| Rated Current | 50A |
| Charge/Discharge Rate | 0.5P / 0.5P |
| Cycle Life | ≥6,000 cycles |
| BMS | Intelligent Battery Management System |
| Protection | BMS + Circuit Breakers |
| Communication | CAN / RS485 / Parallel Dual RS485 |
| Communication Protocol | MODBUS/RTU |
| Protection Rating | IP21 |
| Dimensions (L × W × H) | 600 × 420 × 145 mm |
| Weight | 50 kg |
| Operating Temperature | -30°C to 55°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Maximum Operating Altitude | <2,000 m |
| Installation | Wall-mounted |
| Display | LED parameter display |
| Parallel Capability | Supported |
| Standards | GB/T 36276-2018, UN38.3, IEC 62619, IEC 61000, IEC 62620 |
| Warranty | 7 years* |

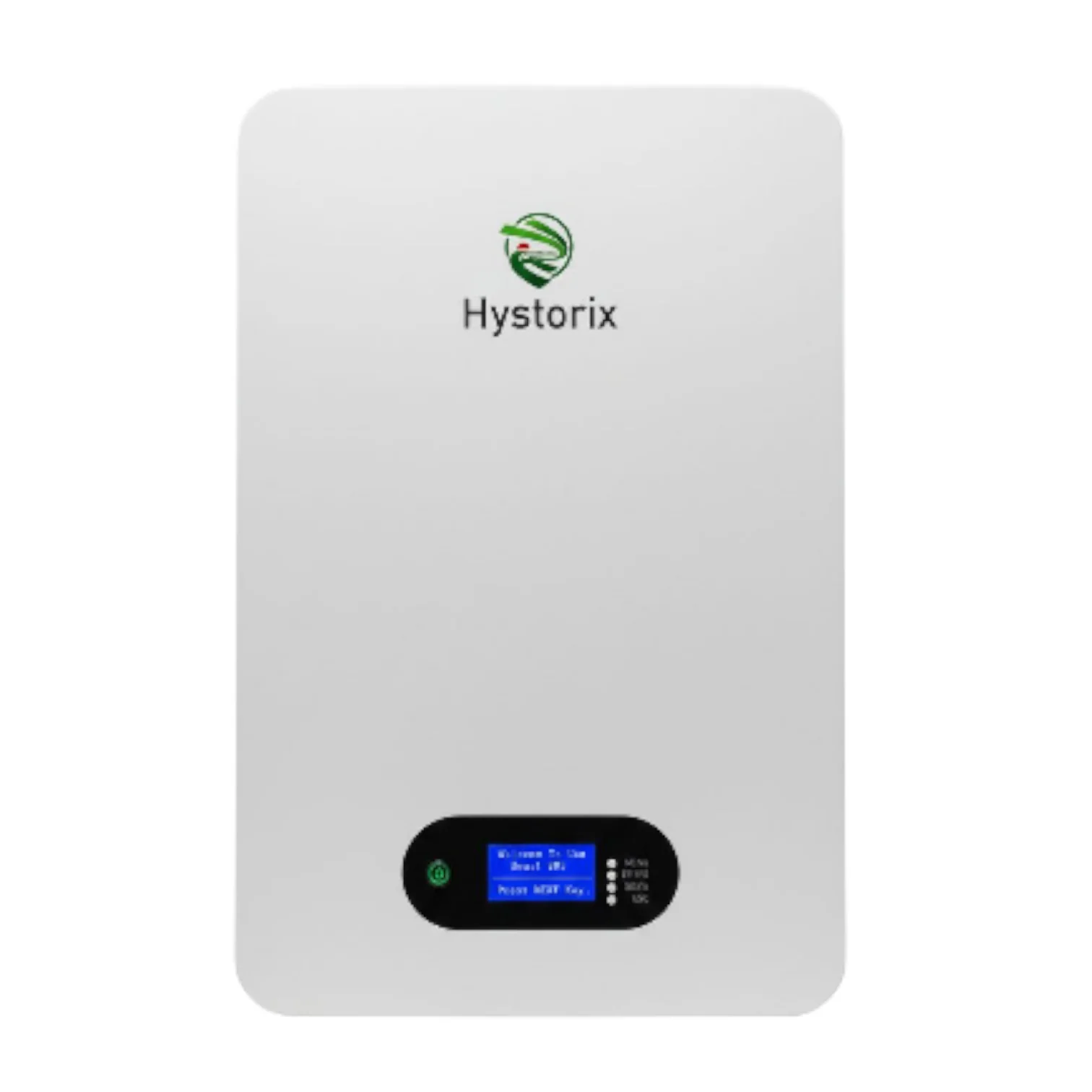

Hystorix 51.2V 100A 5KWH Lithium Battery
Key Features
- 51.2V 100Ah LiFePO₄ Battery
- Fast 1C Charge & 1C Discharge
- 6000+ Life Cycles for long-term reliability
- 7-Year Brand Warranty
- Built-in Smart BMS for protection and stable performance
- High Efficiency & Low Maintenance
- Compatible with Hybrid and Off-Grid Inverters
